24V DC LED Recessed Ceiling Downlight

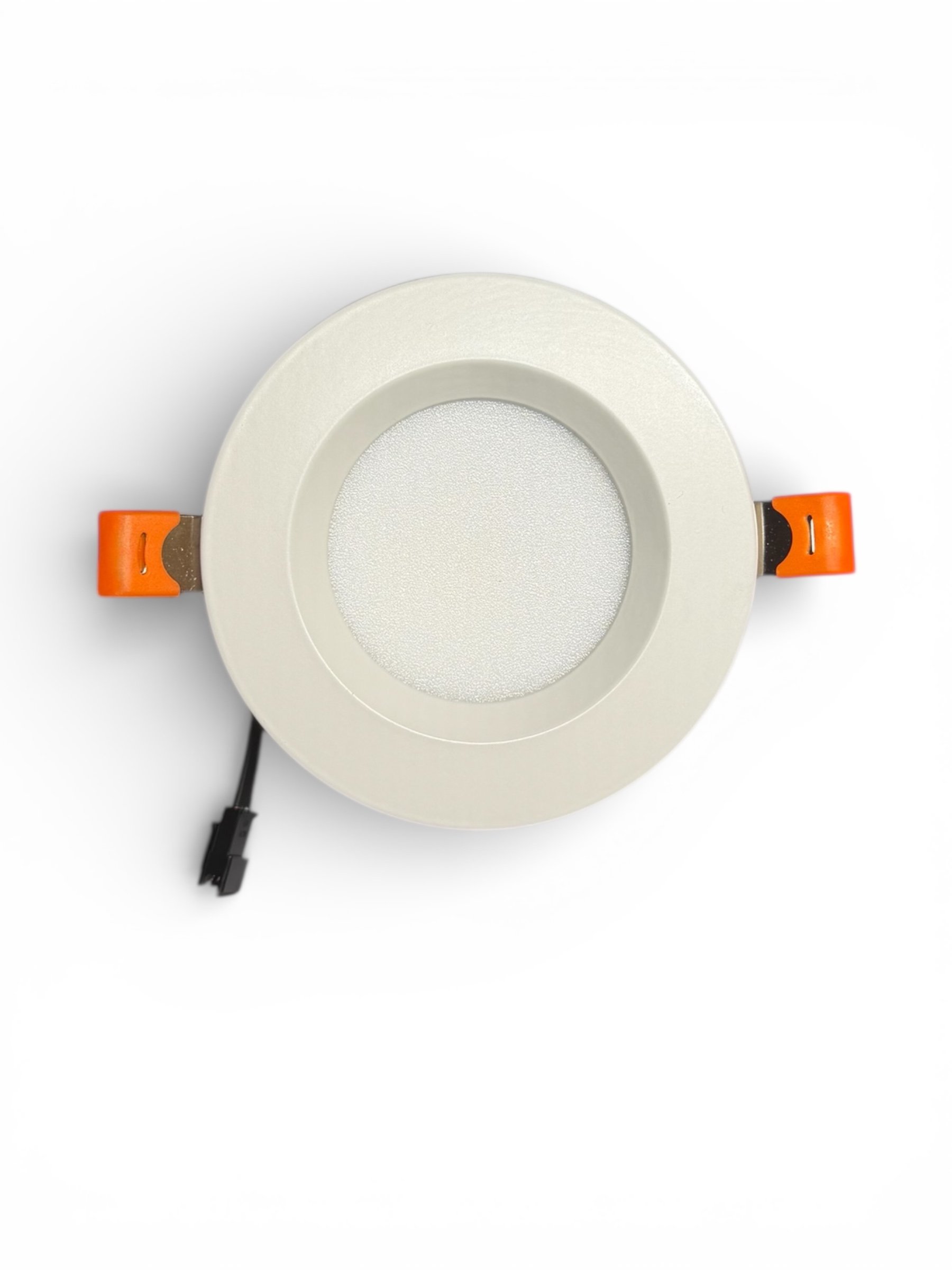

24V DC LED Recessed Downlight – Premium Aluminum, Dual-Input CCT

This high-quality low-voltage recessed LED downlight is engineered for residential and commercial applications where performance, longevity, and installation flexibility matter. Featuring dual-input color temperature (CCT) wiring, this fixture allows selection of 3000K, 4000K, or 6000K through wiring configuration. The solid aluminum heat-sink housing provides excellent thermal management, helping maintain stable light output and significantly extending LED lifespan compared to plastic-bodied fixtures.

⸻

Premium Construction & Performance

• Full aluminum housing for superior heat dissipation

• Efficient thermal management reduces LED stress and improves longevity

• Slim, architectural design for modern ceilings

• Built for professional and commercial installations

⸻

Electrical Specifications

• Input Voltage: 24V DC (low voltage only)

• Power Consumption: 7W

• Lighting Technology: LED

• Beam Angle: 120°

• CRI: ≥90 for accurate, natural color rendering

• Driver: External 24V DC power supply required (not included)

⚠️ Not compatible with 110–120V AC. Do not connect directly to mains power.

⸻

Dimming Capability

• Dimmable with compatible 24V DC PWM or low-voltage dimming systems

• Requires appropriate driver and controller

• Dimming performance depends on the power supply and control method used

• Not compatible with standard household wall dimmers

⸻

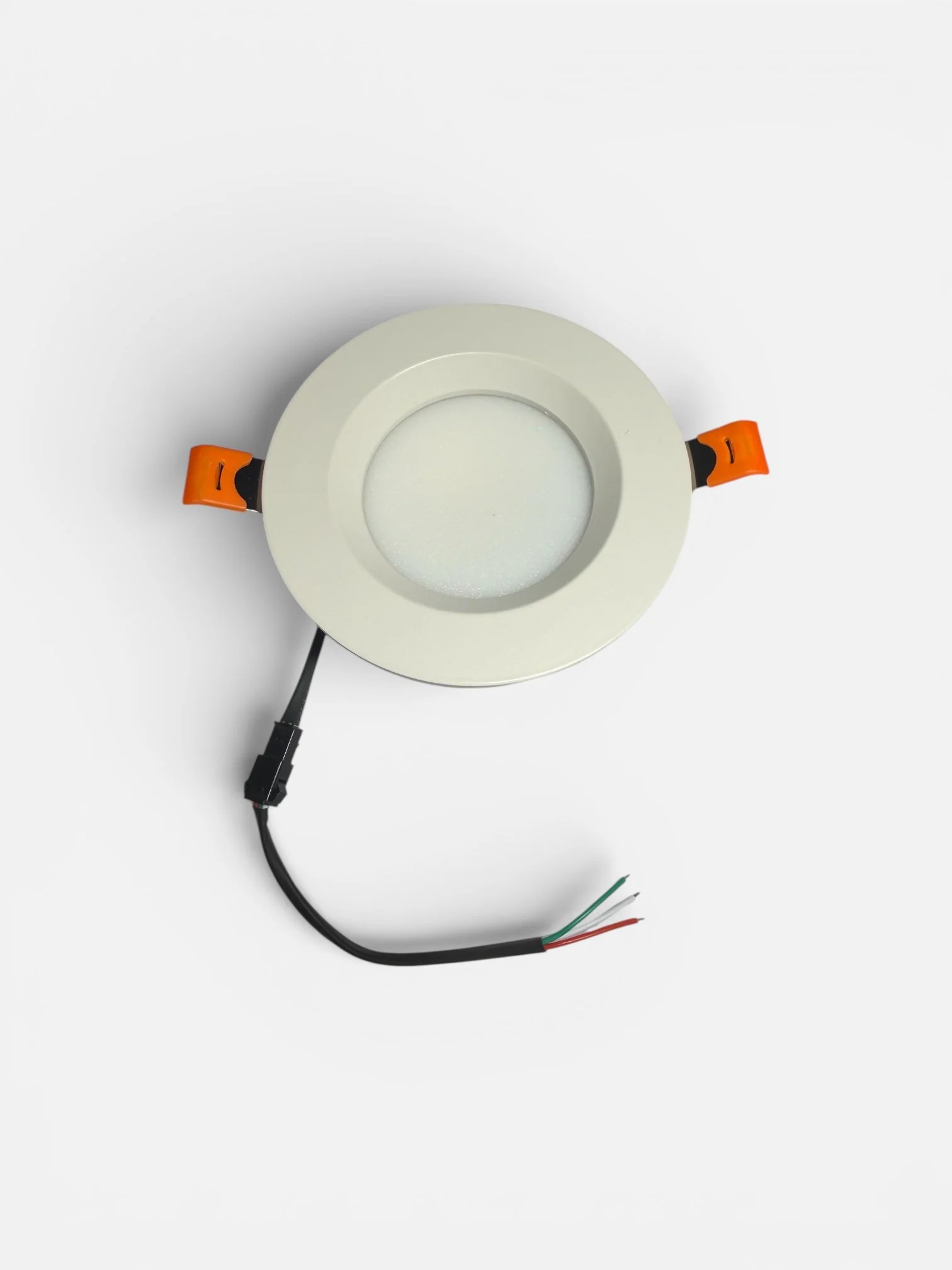

Color Temperature Selection (Dual-Input CCT – Important)

This downlight uses a dual-input CCT system (3-wire design):

• Warm White lead powered only → 3000K

• Cool White lead powered only → 6000K

• Warm + Cool leads powered together → 4000K (Neutral White)

Color temperature is selected by wiring, not by switch, remote, or app.

⸻

Dimensions & Installation

• Ceiling Cutout: 90 mm

• Fixture Size: Ø115 × H43 mm

• Mounting: Recessed ceiling installation with spring clips

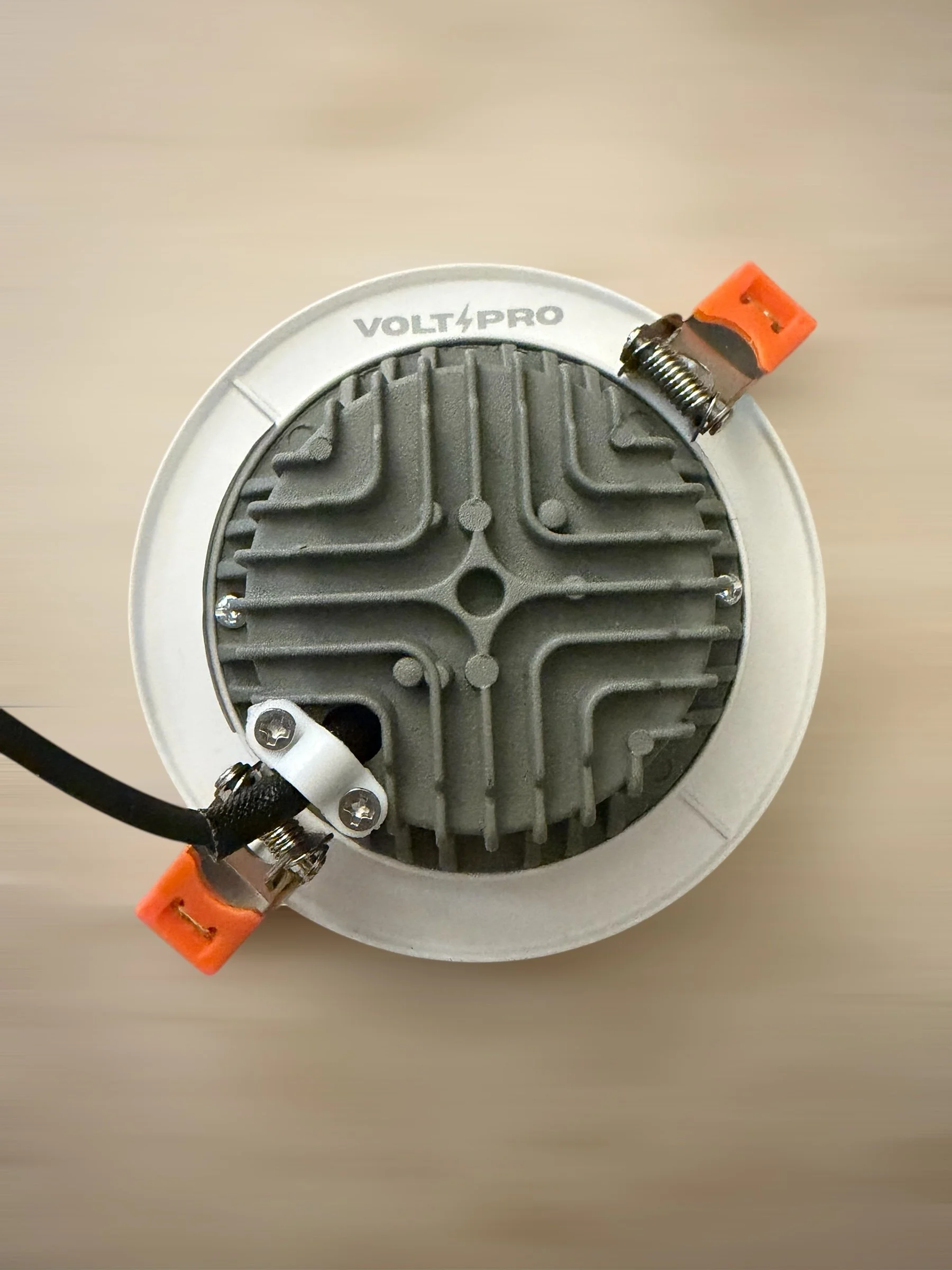

• Housing Material: Aluminum heat sink for optimal thermal performance

⸻

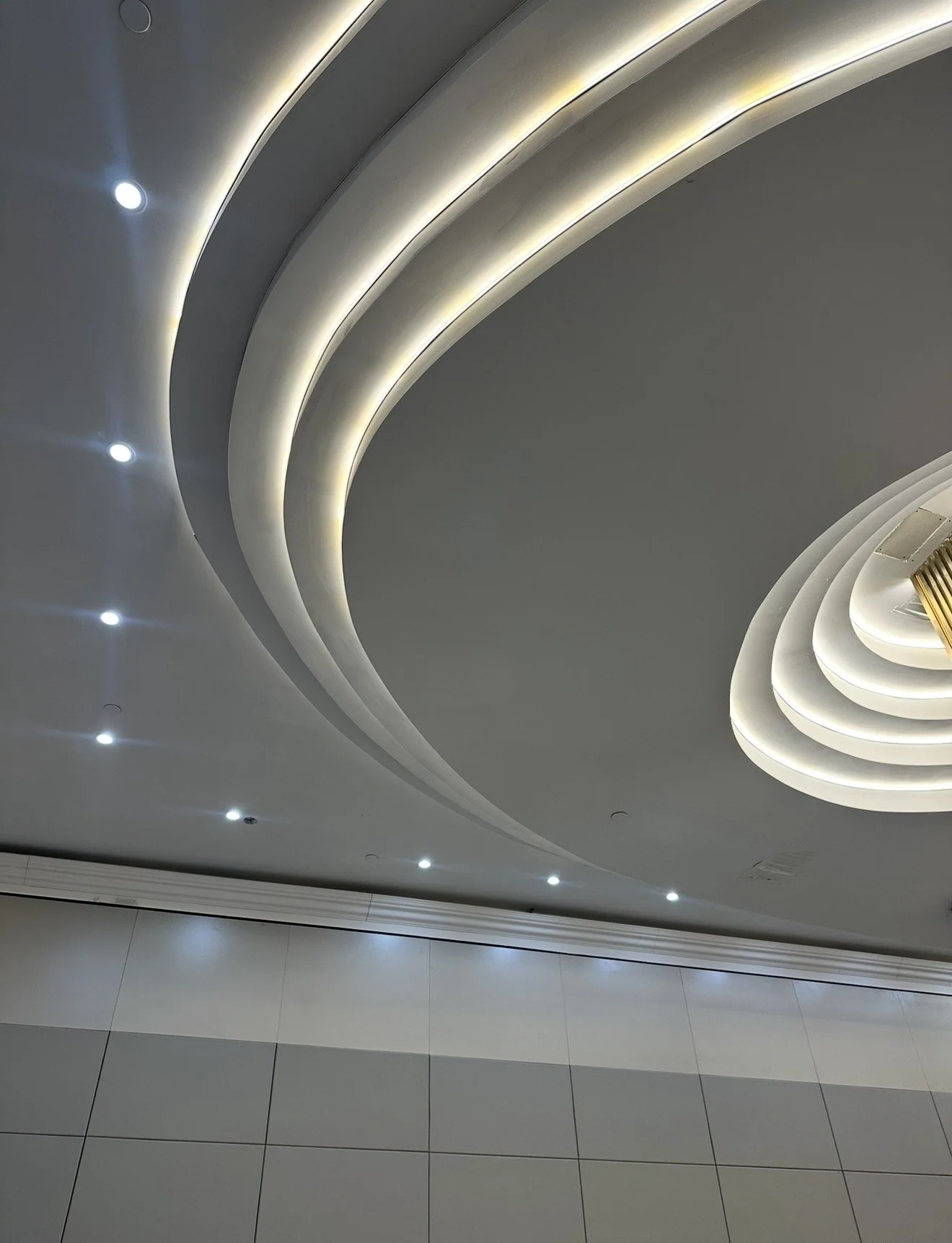

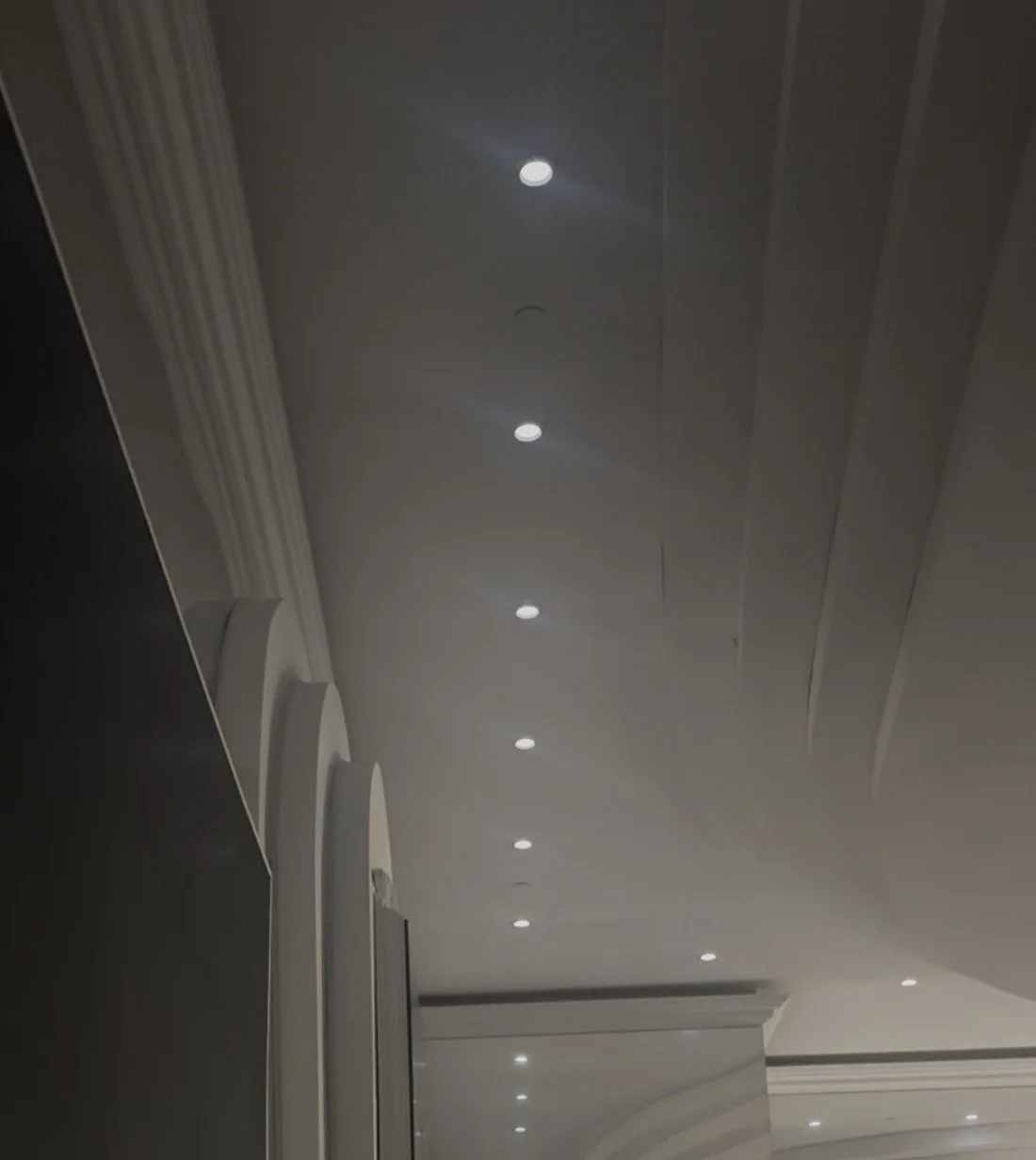

Applications

• Commercial and architectural lighting

• Residential low-voltage systems

• Hallways, kitchens, living areas

• Accent and general ceiling lighting

⸻

What’s Included

• 1 × 24V DC LED recessed downlight

• Pre-installed quick-connect plug for easier and faster installation

(24V DC power supply / driver not included)

⸻

Installation Note

This is a professional low-voltage fixture designed for use with appropriate 24V DC systems.

Professional installation recommended if unfamiliar with low-voltage wiring.
